1.Scope of Application
Stirred tank is widely used in mining, chemical industry, food, power, water treatment, pipeline transportation and other industries as the equipment for preparing slurry mixture.
2.Parameter Specification
Model：XB-1000～XB-20000
Tank Specification Data (Dia. mm×Height mm)：1000×1000~20000×20000
3. Product Introduction
Stirred tank is an indispensable equipment in flotation production process. According to different uses, it can be divided into four types: slurry mixing tank, mixing storage tank, lifting mixing tank and reagent mixing tank.
XB multi-purpose mechanical stirred tank of our company is used for reagent mixing, suspension mixing, slurry transportation, sewage chemical regulation, slurry mixing, etc. The prepared reagent and slurry can be used and treated by flotation machine, filter, filter press, thickener and other equipment. Specific impeller structure is selected according to different working conditions. Baffles are set in the tank. The fluid is affected by the tank wall and baffle, forming a complex flow field in the mixing tank. The flow pattern, speed and direction are all changed due to the interaction between the mixing impeller and baffle. Under the rotating action of the impeller, the slurry and the agent will have large and small circulation movement, so that the slurry and agent in the whole tank can be evenly mixed, and the mixed suspension will be discharged from the overflow port.
4. Main Experience Projects
Domestic: Tibet Ronghui Mining, Laizhou Luzhong Mining, etc, 48 sets.

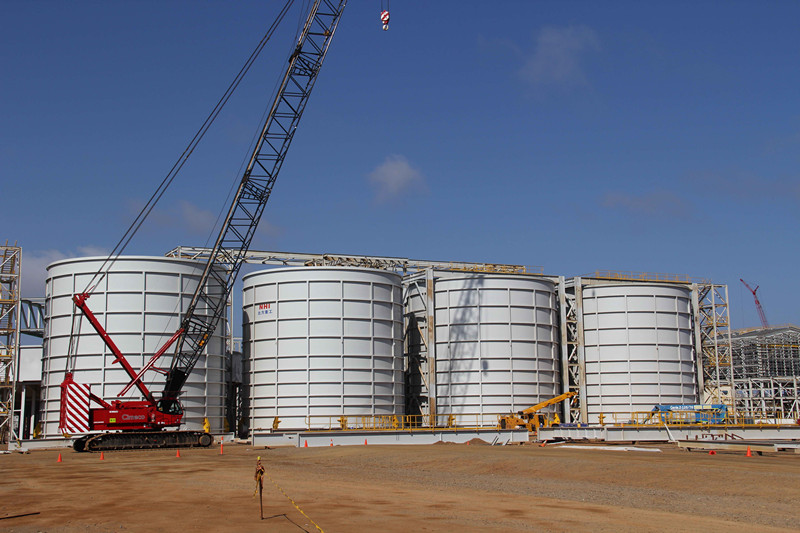

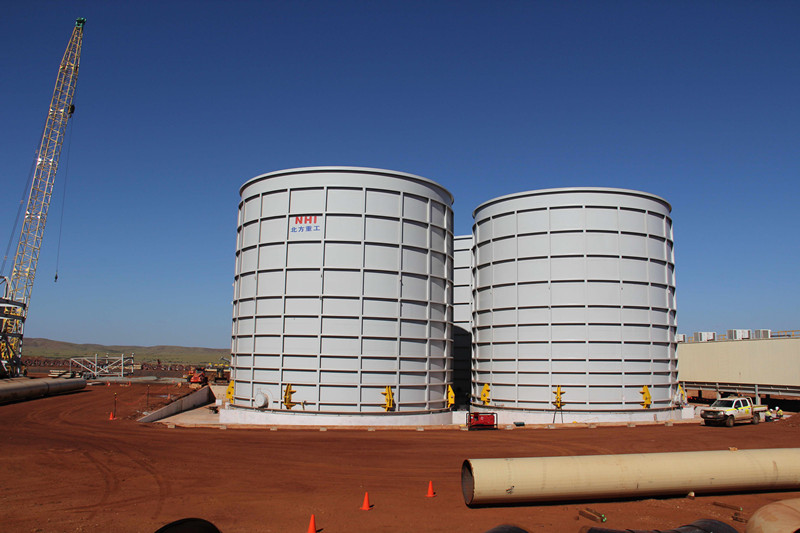

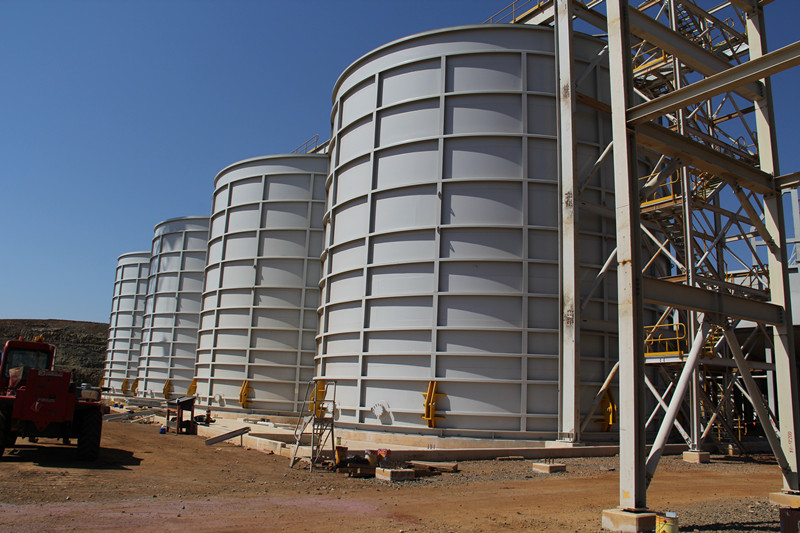

Foreign countries: Western Australia SINO iron ore mine, Congo (Kinshasa) Hituru copper mine project, etc. 60 sets.
